【代码收藏】three.js实现的3D球状拖动旋转效果

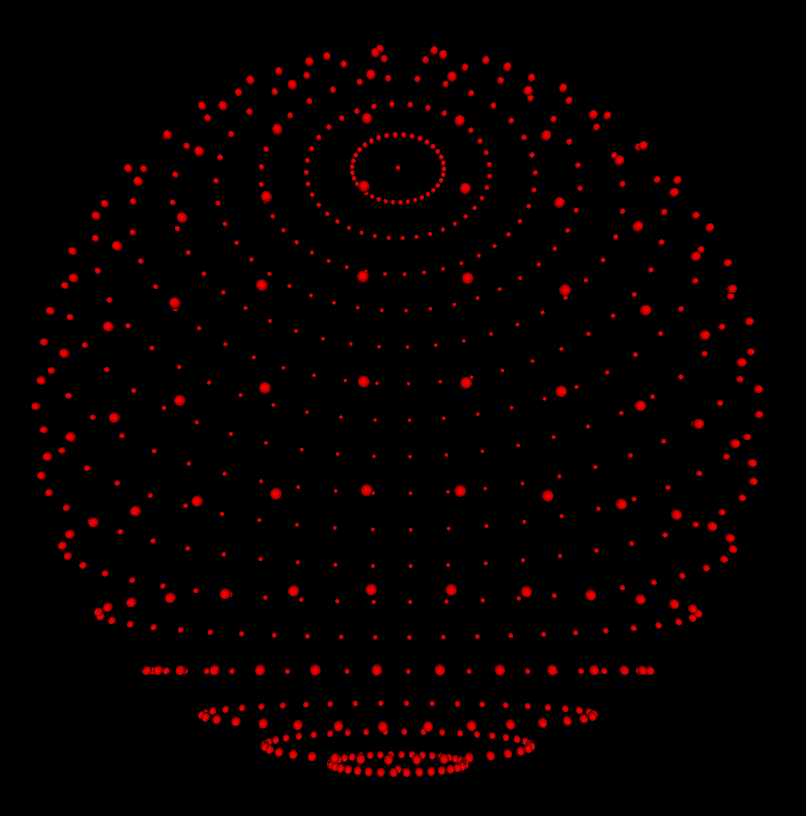

分享一段代码实例，它利用three.js实现了3D球状元素的旋转效果。

默认状态下可以自动旋转，也可以利用鼠标拖动旋转。




<!doctype html>


<html>


<head>


<meta charset="utf-8">


<meta name="author" content="http://www.pipipi.net/" />


<title>前端教程网</title>


<style>


* {


  padding: 0;


  margin: 0;


}


</style>


<script src="https://cdn.bootcss.com/three.js/r81/three.js"></script>


</head>


<body>


<script type="text/javascript">


var scene,


  camera,


  renderer;





scene = new THREE.Scene();


camera = new THREE.PerspectiveCamera(75, window.innerWidth / window.innerHeight, 0.1, 1000);


renderer = new THREE.WebGLRenderer();





renderer.setSize(window.innerWidth, window.innerHeight);


document.body.appendChild(renderer.domElement);





scene.add(camera);





camera.position.z = 600;





var radius = 3,


  segemnt = 20,


  rings = 20,


  R = 300;





var group = new THREE.Group();


var bows = new THREE.Group();





var sphereMaterial = new THREE.MeshLambertMaterial({


  color: 0xff0000


});





for (var i = 0; i < 19; i++) {


  var ball = new THREE.Mesh(new THREE.SphereGeometry(radius, segemnt, rings), sphereMaterial);


  ball.position.x = R * Math.sin((Math.PI / 18) * i);


  ball.position.y = R * Math.cos((Math.PI / 18) * i);





  group.add(ball);


}


for (var j = 0; j < 36; j++) {


  var bow = group.clone();


  bow.rotation.y = Math.PI * 2 / 36 * j;


  bows.add(bow);


}


scene.add(bows);








var pointLight = new THREE.PointLight(0Xffffff);





pointLight.position.x = 0;


pointLight.position.y = 0;


pointLight.position.z = 1000;





scene.add(pointLight);





var mouseX, mouseY, isMove = false;


animation();





function animation() {


  if (!isMove) {


    requestAnimationFrame(animation);


    bows.rotation.y += Math.PI * 0.001;


    bows.rotation.x += Math.PI * 0.001;


    render();


  }


}





function render() {


  renderer.render(scene, camera);


}





document.onmousedown = function(e) {


  isMove = true;


  mouseX = e.pageX;


  mouseY = e.pageY;


};


document.onmousemove = function(e) {


  if (isMove) {


    var x = e.pageX;


    var y = e.pageY;


    var _x = x - mouseX;


    var _y = y - mouseY;


    bows.rotation.x += _y * 0.001 * Math.PI;


    bows.rotation.y += _x * 0.001 * Math.PI;


    render();


    mouseX = x;


    mouseY = y;


  }


};


document.onmouseup = function() {


  isMove = false;


  animation();


}


</script>


</body>


</html>
